Description

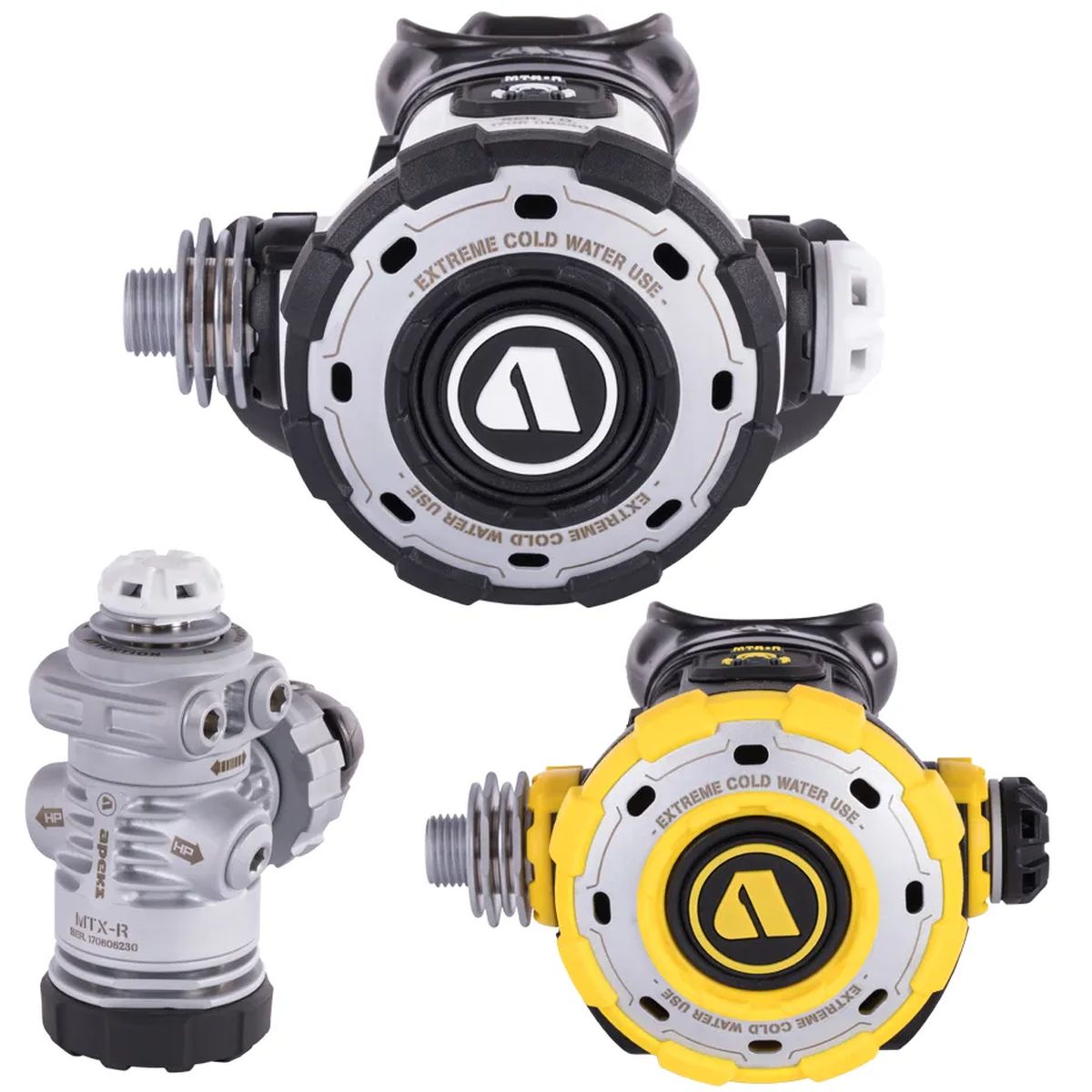

Apeks MTX-R Regulator Pack – DIN 300Bar

The Apeks MTX-R Regulator Pack – DIN 300 Bar is a purpose-built regulator system engineered for extreme environments where reliability is non-negotiable. Based on the original MTX regulator, the MTX-R was developed in accordance with the United States Navy Experimental Dive Unit extreme cold water test, setting it apart as a regulator designed to operate where many others cannot. Its design innovations allow it to perform in near-freezing water at depths exceeding 60 metres, placing it among a very small group of consumer-available regulators capable of such demanding performance.

Central to the MTX-R’s capability is its innovative first stage design, which actively helps prevent ice build-up around the diaphragm. Ice formation in cold water is a primary cause of regulator free flow, and the MTX-R directly addresses this risk through a combination of materials, shaping, and thermal management. The forged first stage body maximises thermal performance, while the over-moulded first-stage end cap and environmental diaphragm further reduce the likelihood of ice accumulation in extreme conditions. A ribbed diaphragm clamp improves heat exchange, ensuring the regulator continues to perform reliably even in prolonged cold water exposure.

Hose routing and durability are equally prioritised. Angled high-pressure ports allow for optimal hose routing and transmitter fitting, while parallel turret ports improve hose orientation and reduce strain. Both the first and second stages feature superb protection from impact damage, reinforcing the MTX-R’s expedition-ready nature and suitability for harsh environments.

The second stage is deliberately simple, with no dive adjustment controls, reducing complexity and lowering the chance of free flow in demanding conditions. A patented heat exchanger surrounds the valve mechanism, dissipating cold caused by gas expansion while drawing in ambient water warmth to further enhance cold water performance. The inclusion of a double swivel hose increases freedom of movement and comfort, particularly important when diving in bulky exposure protection.

Tested for octopus use to 60 metres in cold water, the Apeks MTX-R Regulator Pack is built for divers who operate in the most challenging conditions and require equipment that has been designed, tested, and proven to perform when it matters most.

• Designed specifically for extreme cold water and expedition diving
• Performance validated through military-grade cold water testing

FEATURES

• Regulator developed in accordance with the United States Navy Experimental Dive Unit extreme cold water test
• Designed to perform in near-freezing water at depths over 60 metres
• Innovative first stage design to help prevent ice build-up around the diaphragm
• Over-moulded first-stage end cap and environmental diaphragm to reduce free flow risk
• Forged first stage body for maximum thermal performance
• Ribbed diaphragm clamp to improve heat exchange in cold water
• Angled high-pressure ports for optimal hose routing and transmitter fitting
• Parallel turret ports for improved hose orientation
• Excellent impact protection on both first and second stages
• Simple second stage design with no dive adjustment controls
• Reduced chance of free flow in extreme conditions
• Double swivel hose for improved comfort and freedom of movement
• Patented heat exchanger to manage cold from gas expansion
• Tested for octopus use to 60 metres in cold water

SPECIFICATIONS

• Connections: DIN
• Type of first stage: Over-balanced diaphragm design, environmentally sealed
• Body Type: One piece forged body
• Number of HP ports: 2 (7/16″ UNF)
• Number of MP ports: 5 (3/8″ UNF)
• Environmental Dry Kit: Standard
• First stage exterior: Satin chrome
• Orientation: Convertible LH or RH
• Coldwater Use: Yes – extreme
• Type of second stage: Pneumatically balanced
• Opening Effort Control Knob: No
• Integrated Venturi Lever: No
• Mouthpiece: Comfo-bite
• Exhaust tee: Diver Changeable – one set supplied
• Heat Exchanger for freezing resistance: Yes
• Hose type: Braided Flexi-hose
• Nitrox compatible: Yes to 40% O2 when new, out of the box / Can be O2 cleaned to 100%.

PACKAGE CONTENTS

• Apeks MTX-R First Stage – DIN 300 Bar
• Apeks MTX-R Second Stage
• Double swivel hose
