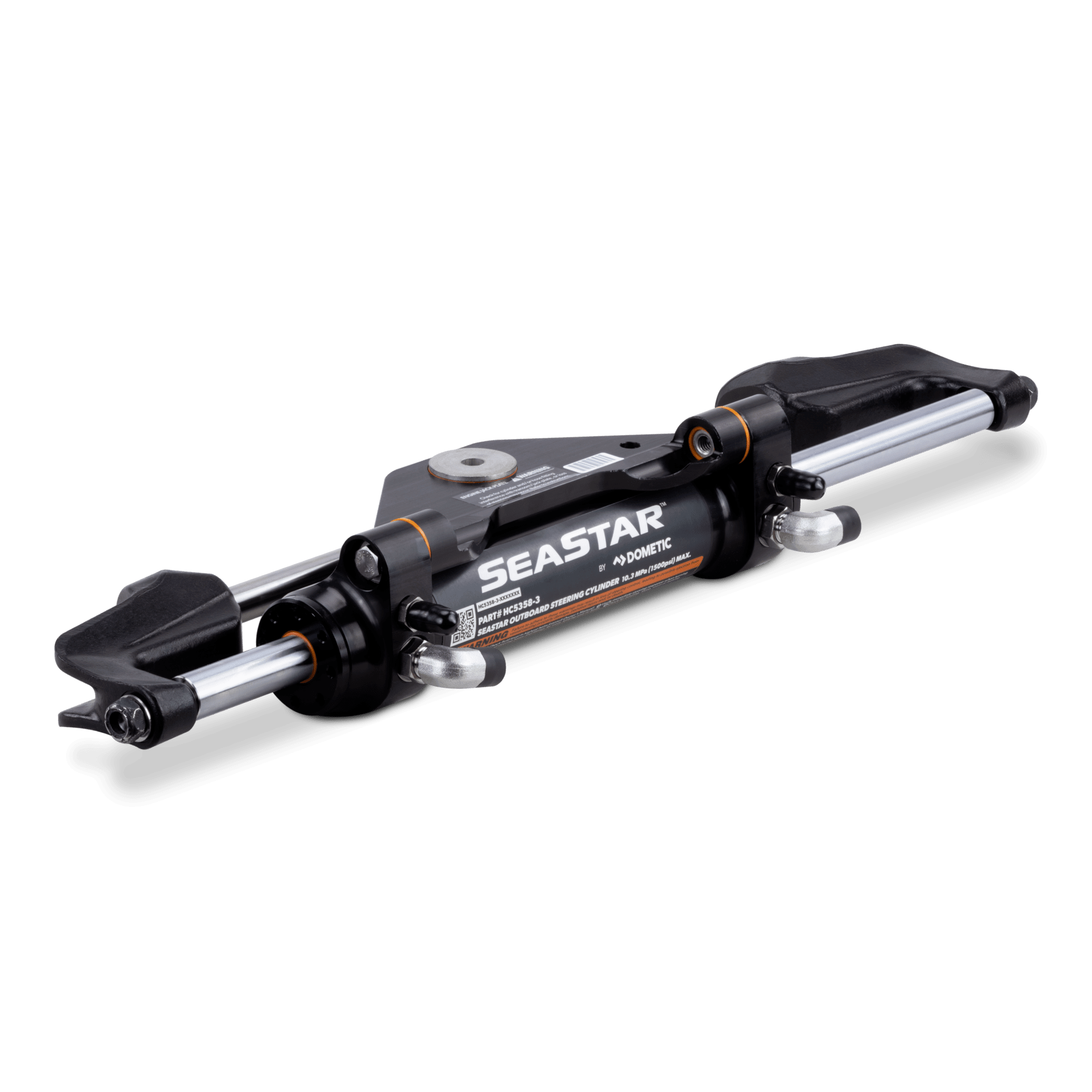

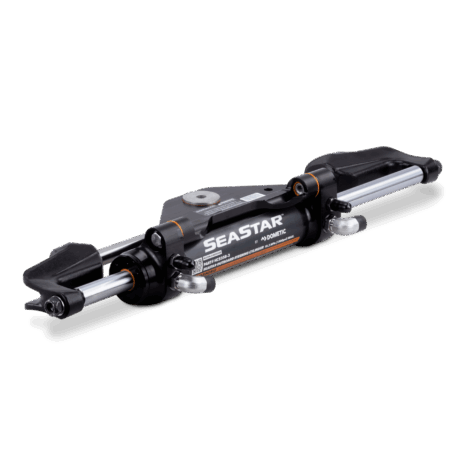

Dometic SeaStar HC5358-3 Front-Mount Outboard Steering Cylinder

Description

The Dometic SeaStar HC5358-3 is a front-mount outboard hydraulic steering cylinder with an inverted pivot plate. Its marine-duty construction and redesigned eight-hole end-gland sealing system are built for repeated steering loads and harsh marine conditions, while positionable stainless-steel O-ring fittings simplify hose routing.

Product details

• Manufacturer: Dometic SeaStar
• Manufacturer part number: HC5358-3
• Current Dometic catalogue SKU: 9130001028
• Supplier ordering SKU: THC5358-3
• Type: front-mount outboard hydraulic steering cylinder
• Plate configuration: inverted pivot plate
• Overall product width: 552.45 mm (21 3/4 in)
• Product depth: 123.82 mm
• Manufacturer-listed net weight: 4.31 kg
• Maximum working pressure shown by Dometic: 10.3 MPa / 1500 psi

Application notes

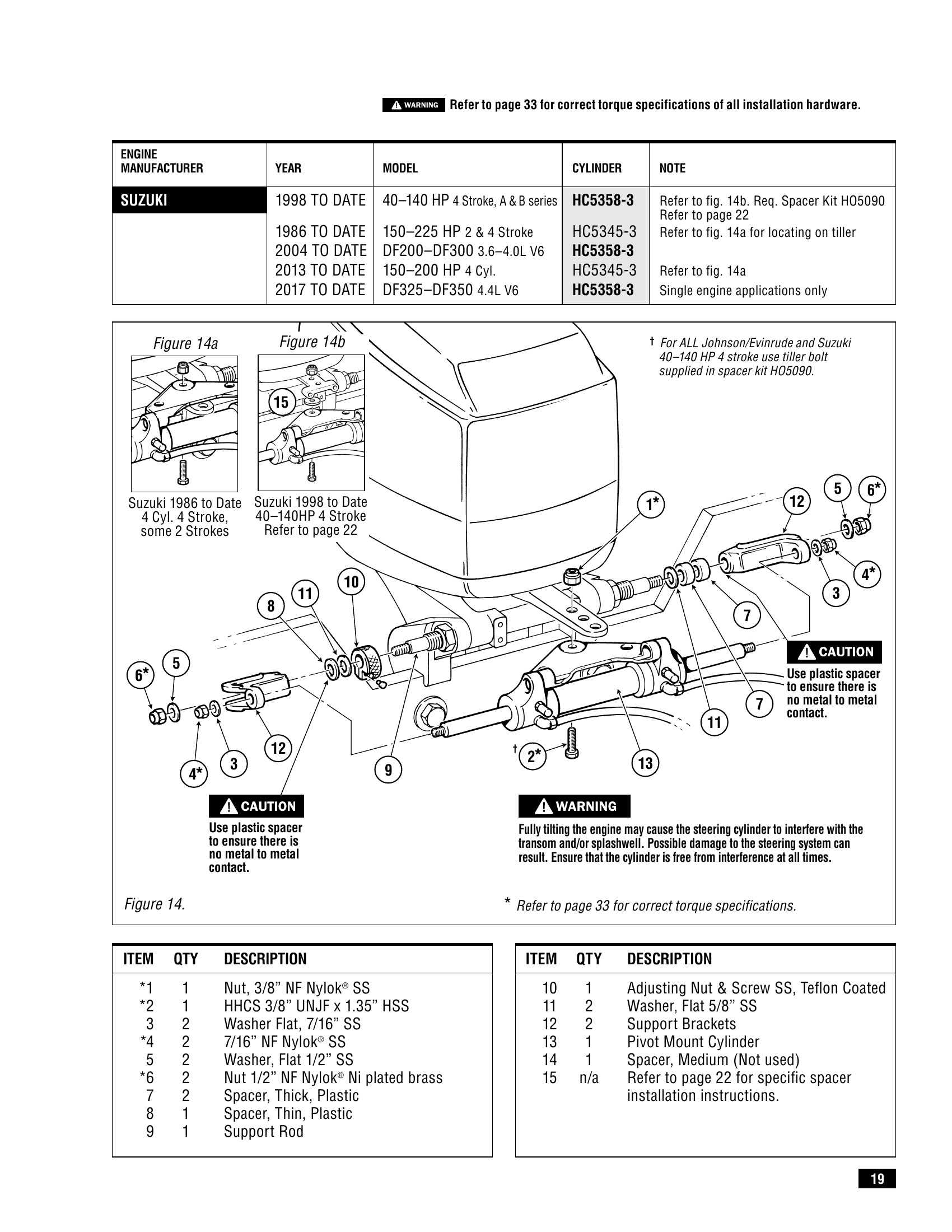

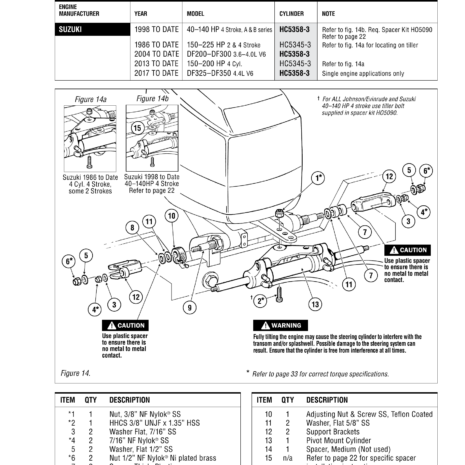

Dometic lists HC5358-3 for selected Suzuki 40-140 hp four-stroke A/B-series engines, selected DF200-DF300 V6 engines, DF325-DF350 single-engine applications, and other applications covered by its current selection guide. Some installations require spacer kit HO5090. Engine model, year, steering geometry, hose compatibility and clearance through the full tilt range must be checked before ordering.

Hydraulic steering is safety-critical. Installation, filling, purging and torque checks should be completed by a qualified marine technician using the current Dometic SeaStar instructions.
