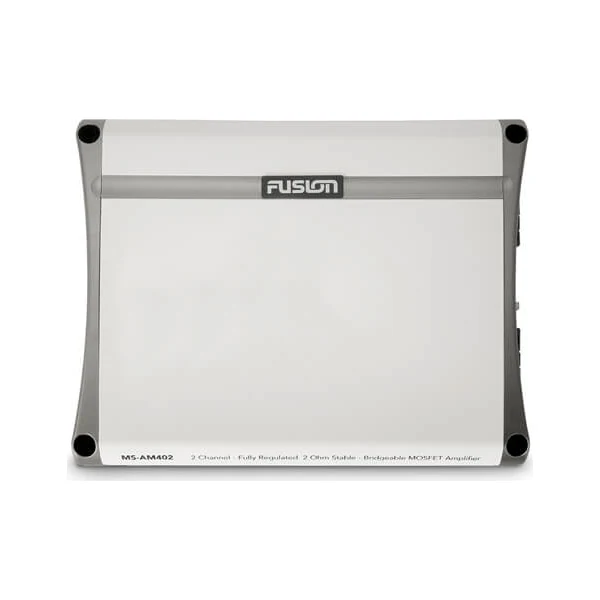

Fusion AM Series Marine Amplifiers, 400-Watt 2 Channel Marine Amplifier – MS-AM402

Description

Build an audio system with amplification selected for the speakers and listening zones on your boat. Fusion AM Series Marine Amplifiers, 400-Watt 2 Channel Marine Amplifier – MS-AM402 adds a dedicated power stage to a compatible setup, with the exact model and supply requirements set out below.

Choose the right configuration

• Manufacturer part number: 010-01499-00
• Supplied model: MS-AM402, Fusion, 2 Channel Marine Amplifier
• Exact variant: 400-Watt 2 Channel Marine Amplifier
• Selected configuration: 2; httpsresgarmincomenproducts010-01499-00vcf-sm-2eeae41f-90d9-4a9a-a22d-72e02d449060jpg
• Physical dimensions (Height): 229 mm (9.02")
• Physical dimensions (Width): 2 Channel: 296 mm (11.65" ) 4-Channel: 366 mm (14.41")
• Physical dimensions (Depth): 53 mm (2.09")
• Weight: 2 Channel: 2.8 kg (6.17 lbs) 4-Channel: 3.25 kg (7.17 lbs)
• Operating voltage: 10.8-16 VDC
• Operating temperature range: 0° to 50° C (32° to 122° F)
• Input voltage range @ RCA inputs: 0.3 V-8 V RMS (user adjustable)

What is included

• One amplifier (based on what you select)
• Documentation

Before you order

Check the exact mounting dimensions, speaker impedance, amplifier matching and electrical supply before installation. This product is intended for its documented audio function; other equipment shown in a system illustration is not included unless listed above.
