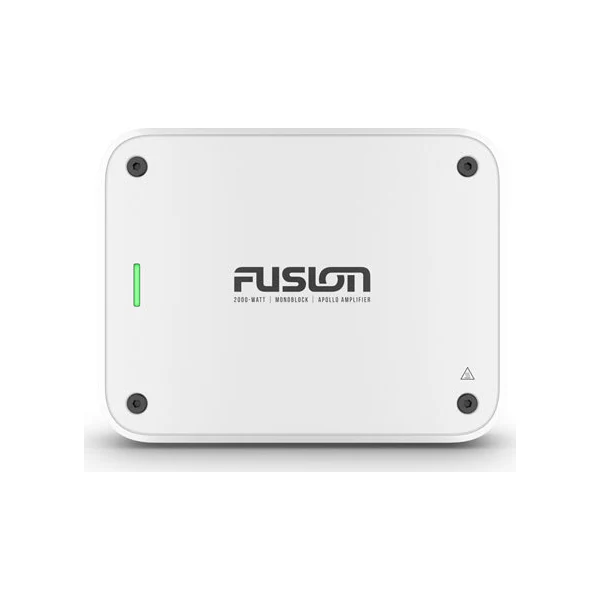

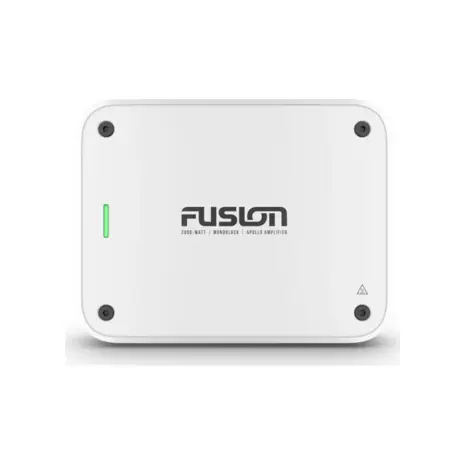

Fusion Apollo Marine Amplifiers, Monoblock Marine Amplifier (650-watt RMS) – MS-AP12000

Description

Build an audio system with amplification selected for the speakers and listening zones on your boat. Fusion Apollo Marine Amplifiers, Monoblock Marine Amplifier (650-watt RMS) – MS-AP12000 adds a dedicated power stage to a compatible setup, with the exact model and supply requirements set out below.

Choose the right configuration

• Manufacturer part number: 010-02284-15
• Supplied model: MS-AP12000, FUSION, 1 Ch Marine Amplifier, Apollo NF
• Exact variant: Monoblock Marine Amplifier (650-watt RMS)
• Selected configuration: 1; httpsresgarmincomenproducts010-02284-15vcf-smjpg
• Physical dimensions (Height): Monoblock/4/6/8-Channel: 7.06" (180 mm) Zone: 3.94" (100 mm)
• Physical dimensions (Width): Monoblock/4-Channel: 9.25" (235 mm) 6-Channel: 11.69" (297 mm) 8-Channel: 14.13" (359 mm) Zone: 3.94" (100 mm)
• Physical dimensions (Depth): Monoblock/4/6/8-Channel: 1.75" (45 mm) Zone: 1.57" (40 mm)
• Weight: Monoblock/4-Channel: 4.85 lbs (2.2 kg) 6-Channel: 5.95 lbs (2.7 kg) 8-Channel: 6.94 lbs (3.15 kg) Zone: 1.01 lbs (460 g)
• Operating temperature range: 32° to 122° F (0° to 50° C)
• Input voltage range @ RCA inputs: Monoblock: 2.15 V RMS 4/6/8-Channel: 1.3 V RMS Zone: 0.45 V RMS

What is included

• One Apollo monoblock amplifier
• One mounting bracket
• One power connector
• One speaker connector
• Four 8-guage, flat head self-tapping screws
• Four 8-guage, pan head self-tapping screws (for mounting bracket)
• Four screw covers
• Mounting template
• Installation instructions
• Important safety and product information (ISPI)
• One Apollo 4 channel amplifier
• Two speaker connectors with high power mode adapters
• ISPI
• One Apollo 6 channel amplifier
• Three speaker connectors with high power mode adapters
• One Apollo 8 channel amplifier
• Four speaker connectors with high power mode adapters
• One Apollo zone amplifier
• Three 6-guage, self-tapping screws
• Wiring loom

Before you order

Check the exact mounting dimensions, speaker impedance, amplifier matching and electrical supply before installation. This product is intended for its documented audio function; other equipment shown in a system illustration is not included unless listed above.
