Description

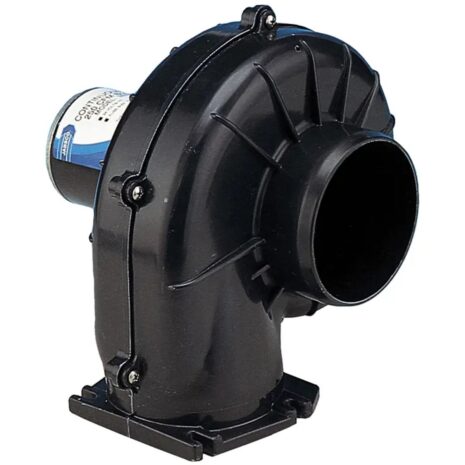

Jabsco Continuous Duty Flangemount 24V 100mm Blower

The Jabsco Continuous Duty Flangemount 24V 100mm Blower is a high-performance, heavy-duty ventilation solution designed for demanding marine applications. Engineered for continuous duty, this blower is ideal for engine rooms on commercial vessels, charter yachts, and other installations that require reliable, long-term performance. Its design ensures high-volume airflow for intake or extraction, helping maintain optimal engine room conditions and enhance safety during operation.

Delivering a powerful airflow of 7 cubic metres per minute (250 cubic feet per minute), this blower provides efficient ventilation for confined marine spaces. Its compact form factor allows it to be installed in tight areas without compromising performance. The Flangemount design features a sturdy outlet flange that mounts directly to a bulkhead, offering a secure and space-saving installation solution. This flexibility makes it suitable for a wide range of vessel types and installation configurations.

Built for durability and longevity, the Jabsco Continuous Duty Flangemount 24V 100mm Blower features a motor rated for 5,000 hours of continuous operation. Its 24V DC motor operates safely with a maximum current of 6 amps and is protected by a 10-amp fuse, ensuring reliable and consistent performance over time. The blower is designed for heavy-use marine environments, supporting high-volume airflow while maintaining efficiency and durability.

The Jabsco Continuous Duty Flangemount 24V 100mm Blower is compatible with 100 mm (4”) ducting, allowing for easy integration into existing ventilation systems. Its lightweight construction, combined with robust performance, makes it a dependable solution for commercial and recreational vessels where consistent engine room ventilation is critical.

FEATURES

• Continuous duty 24V marine blower
• High-volume intake or extraction for engine rooms
• Flange outlet mounts directly on bulkhead for secure installation
• Long-life motor rated for 5,000 hours
• Compact and lightweight for flexible installation
• Fuse-protected electrical system
• Safe and efficient operation for heavy-use marine applications

SPECIFICATIONS

• Voltage: 24 V DC
• Maximum Current: 6 amps
• Fuse Size: 10 amp
• Airflow: 7 cu.m/min (250 cu.ft/min)
• Duct Connections: 100 mm (4”)
• Dimensions: 240 mm x 220 mm x 230 mm
• Weight: 2.95 kg
• Packaged Dimensions: 28 x 34 x 29 cm
• Approximate Packed Weight: 3.45 kg
