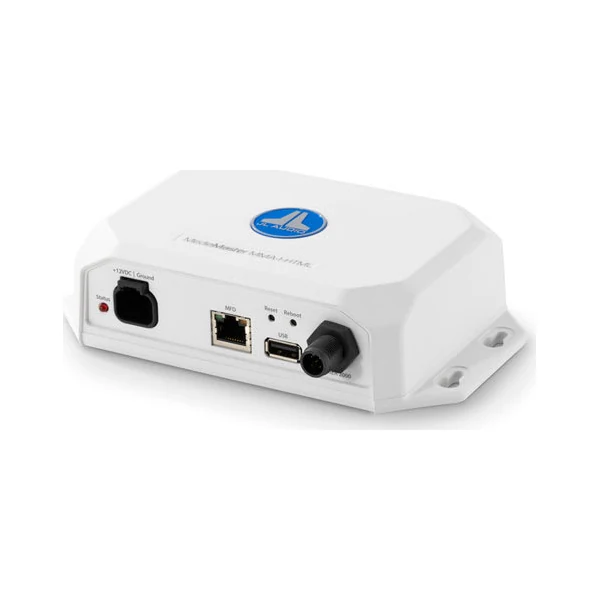

JL Audio MFD Data Interface for MediaMaster Source Unit (MMA-1-HTML)

Description

Make a compatible onboard audio system easier to operate and integrate. JL Audio MFD Data Interface for MediaMaster Source Unit (MMA-1-HTML) adds its specified control or connection function to the supported system, keeping the choice of interface separate from the stereo itself.

Choose the right configuration

• Manufacturer part number: 010-03135-00
• Supplied model: MMA-1-HTML, Signal Processor, NMEA200 Network, MFD Data interface for use with MediaMaster
• Selected configuration: JL Audio® MFD Data Interface for MediaMaster® Source Unit
• Physical dimensions (Height): 1.73" (44 mm)
• Physical dimensions (Width): 6.77" (172 mm)
• Physical dimensions (Depth): 3.98" (101 mm)
• Operating temperature range: -4° F to +149° F (-20° C to +65° C)
• Multi-language interface: English/French/German/Italian/Spanish
• Power Input: 10-15.9 VDC

What is included

• NMEA 2000 ® network MFD data interface module
• Wiring harness (1A fuse)
• Four stainless steel mounting screws

Before you order

Check the exact mounting dimensions, speaker impedance, amplifier matching and electrical supply before installation. This product is intended for its documented audio function; other equipment shown in a system illustration is not included unless listed above.
