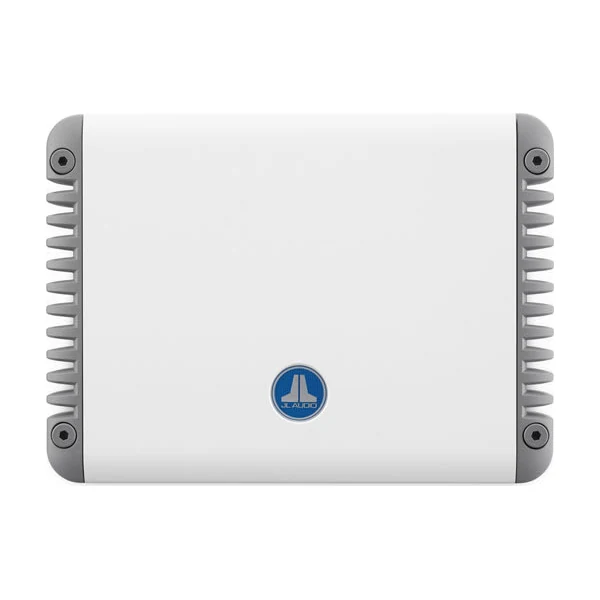

JL Audio MHD Marine Amplifier, 4 Channel Full-Range Marine Amplifier (600 W)

Description

Build an audio system with amplification selected for the speakers and listening zones on your boat. JL Audio MHD Marine Amplifier, 4 Channel Full-Range Marine Amplifier (600 W) adds a dedicated power stage to a compatible setup, with the exact model and supply requirements set out below.

Choose the right configuration

• Manufacturer part number: 010-03319-00
• Supplied model: Amplifier MHD600/4, Amp, JLA, (98224)
• Exact variant: 4 Channel Full-Range Marine Amplifier (600 W)
• Selected configuration: 4
• Physical dimensions (Height): 49 mm (1.93")
• Physical dimensions (Width): 273 mm (10.74")
• Physical dimensions (Depth): 199 mm (7.85")
• Weight: Monoblock: 2.99 kg (6.6 lbs) 5-Channel: 3.11 kg (6.85 lbs)
• Operating voltage: 11-14.5 VDC (12 V Models) 22-29 VDC (24 V Models)
• Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs: Monoblock: > 110 dB below rated power 4-Channel: > 110 dB 5-Channel: > 108.5 dB below rated power
• Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs: Monoblock: > 88 dB 4/5-Channel: > 88.2 dB
• Input voltage range @ RCA inputs: Switchable from 200 mV-2 V RMS (low) to 800 mV-8 V RMS (high)

What is included

• MHD amplifier
• Power input plug
• Speaker connection plug(s)
• Four mounting feet
• 2.5 mm Allen wrench
• 4 mm Allen wrench
• Four machine screws
• JL Audio badge

Before you order

Check the exact mounting dimensions, speaker impedance, amplifier matching and electrical supply before installation. This product is intended for its documented audio function; other equipment shown in a system illustration is not included unless listed above.
