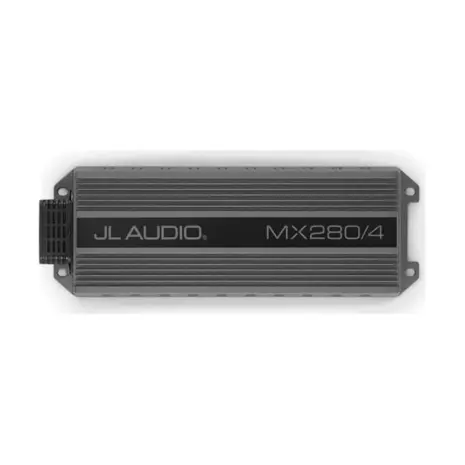

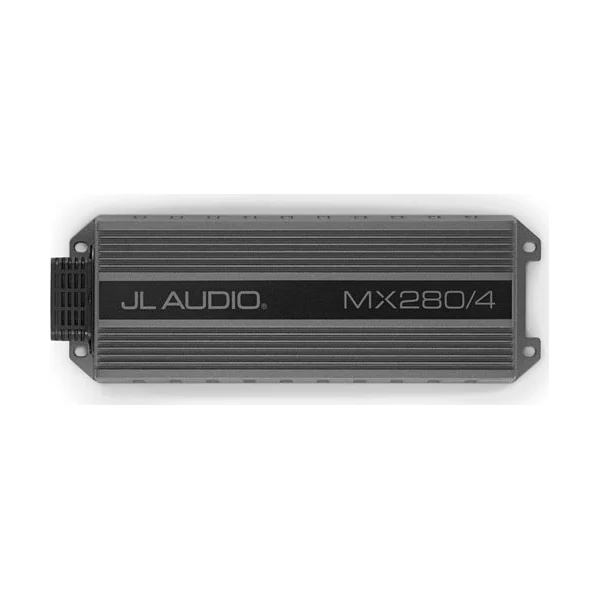

JL Audio MX Marine and Powersports Amplifiers, 4 Channel Full-Range Amplifier (280 watts) (MX280/4)

Description

Build an audio system with amplification selected for the speakers and listening zones on your boat. JL Audio MX Marine and Powersports Amplifiers, 4 Channel Full-Range Amplifier (280 watts) (MX280/4) adds a dedicated power stage to a compatible setup, with the exact model and supply requirements set out below.

Choose the right configuration

• Manufacturer part number: 010-03105-00
• Supplied model: MX280/4, Amp, JLA, (98405)
• Exact variant: 4 Channel Full-Range Amplifier (280 watts) (MX280/4)
• Selected configuration: 4; 280 watts
• Physical dimensions (Height): 45 mm (1.77")
• Physical dimensions (Width): Monoblock (300 W)/4-Channel (280 W): 220 mm (8.66") Monoblock (500 W)/3/4-Channel (500 W): 237 mm (9.33")
• Physical dimensions (Depth): Monoblock (300 W)/4-Channel (280 W): 78.5 mm (3.09") Monoblock (500 W )/3/4-Channel (500 W): 115 mm (4.50")
• Weight: 1.44 kg (3.18 lbs)
• Operating voltage: 11-15 VDC
• Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs: Monoblock (300 W): > 85 dB Monoblock (500 W): > 97 dB 4-Channel (280 W): > 89.5 dB 4-Channel (500 W): > 88 dB
• Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Main Channels: 3-Channel: > 88 dB
• Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Subwoofer Channel: 3-Channel: > 88 dB

What is included

• MX amplifier with power/signal pigtails
• Four 1-inch self-tapping screws

Before you order

Check the exact mounting dimensions, speaker impedance, amplifier matching and electrical supply before installation. This product is intended for its documented audio function; other equipment shown in a system illustration is not included unless listed above.
