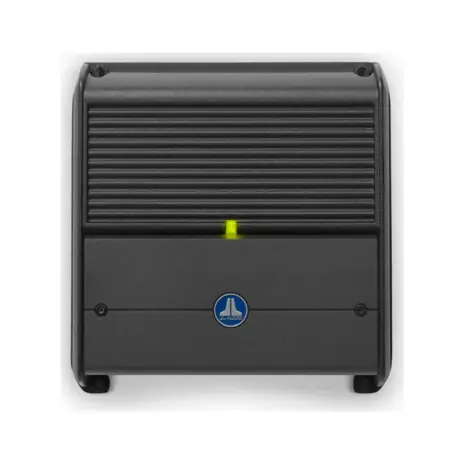

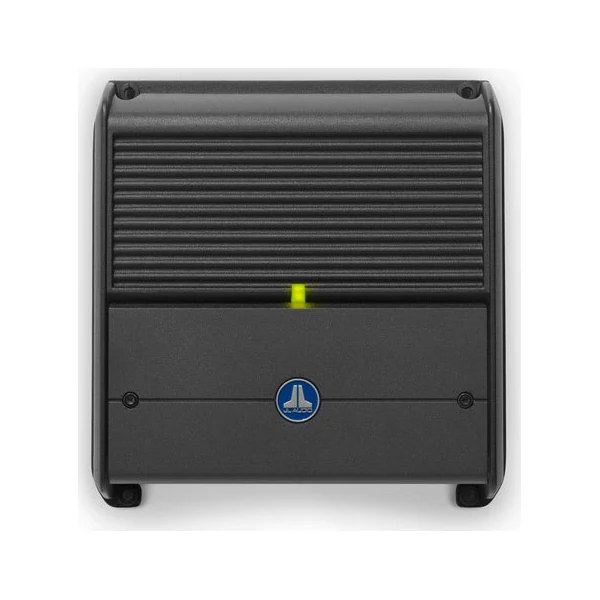

JL Audio XDM Car and Marine Amplifier, Monoblock Car and Marine Subwoofer Amplifier (300 W) – XDM300/1

Description

Build an audio system with amplification selected for the speakers and listening zones on your boat. JL Audio XDM Car and Marine Amplifier, Monoblock Car and Marine Subwoofer Amplifier (300 W) – XDM300/1 adds a dedicated power stage to a compatible setup, with the exact model and supply requirements set out below.

Choose the right configuration

• Manufacturer part number: 010-03839-00
• Supplied model: XDM300/1, Amp, JLA, (98680)
• Exact variant: Monoblock Car and Marine Subwoofer Amplifier (300 W)
• Selected configuration: 1; 300 W
• Physical dimensions (Height): 52 mm (2.05")
• Physical dimensions (Depth): 180 mm (7.09")
• Operating voltage: 11-14.5 VDC (12V Models)
• Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs: Monoblock (300 W): > 100 dB Monoblock (600 W): > 87 dB Monoblock (1000 W): > 83 dB 2/4/6-Channel: > 104 dB
• Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Main Channels: 3/5-Channel: > 104 dB
• Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Subwoofer Channel: 3/5-Channel: > 103 dB
• Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs: Monoblock (300 W): > 80 dB Monoblock (600 W): > 67 dB Monoblock (1000 W): > 53 dB 2/4/6-Channel: > 84 dB
• Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Main Channels: 3/5-Channel: > 84 dB

What is included

• XDM amplifier
• 2.5 mm Allen wrench
• JL Audio badge

Before you order

Check the exact mounting dimensions, speaker impedance, amplifier matching and electrical supply before installation. This product is intended for its documented audio function; other equipment shown in a system illustration is not included unless listed above.
