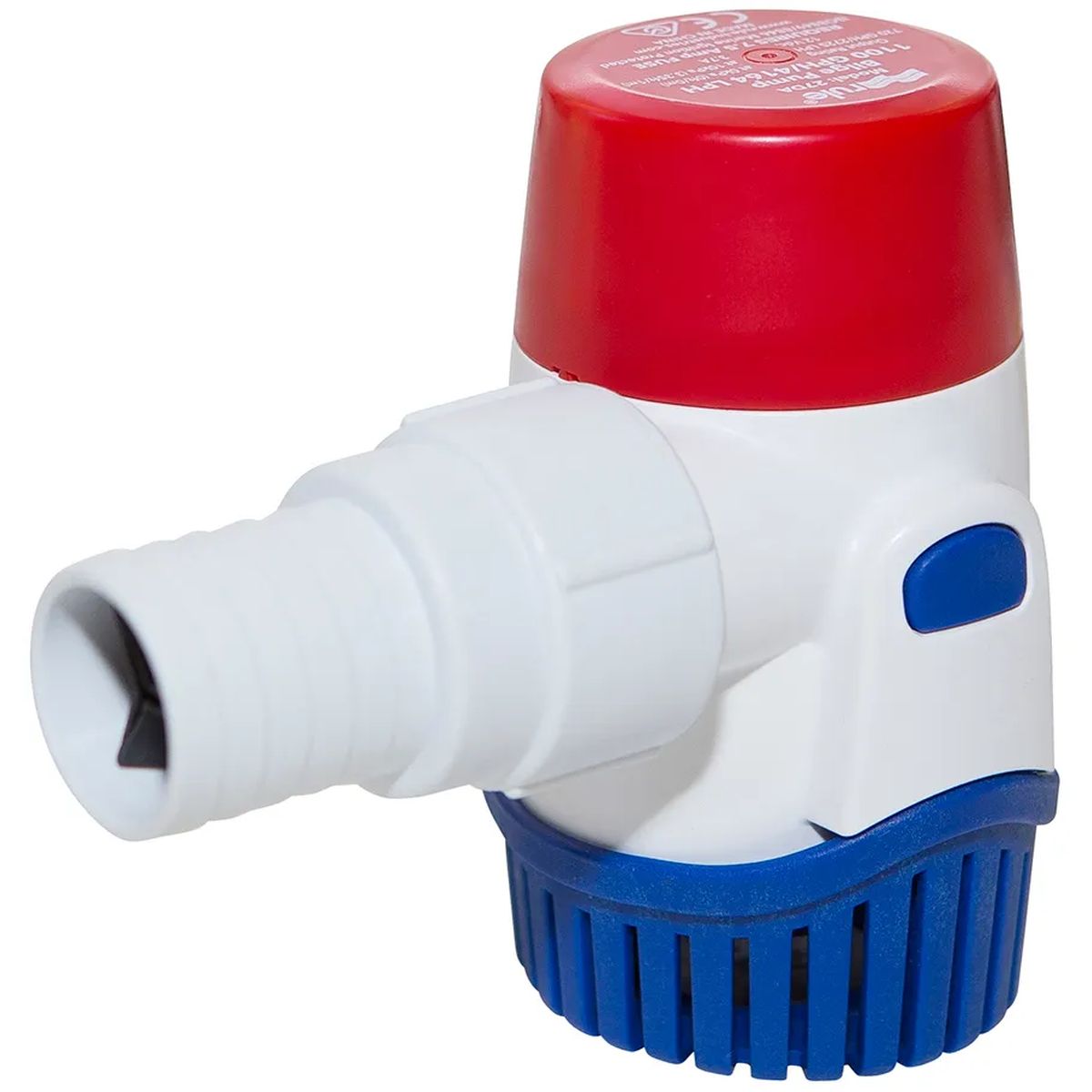

Rule 27DA 1100 12V Submersible Bilge Pump

The Rule 27DA 1100 12V Submersible Bilge Pump is a compact yet powerful bilge pumping solution designed for smaller vessels that require efficient water removal without excessive power consumption. Capable of delivering up to 69 litres per minute (15 gallons per minute) without the check valve and supporting a maximum recommended discharge head of 2 metres, this pump provides dependable performance for everyday bilge management in tight or confined spaces.

Built with a tough plastic body, the Rule 27DA 1100 12V Submersible Bilge Pump is engineered for durability and long-term use in marine environments. The quick-release inlet strainer allows for rapid and easy cleaning, helping to prevent debris buildup and ensuring consistent flow over time. Despite its strong output, the pump maintains a relatively low current draw of 3.7 amps, helping conserve battery power while still delivering effective bilge drainage.

The pump includes a built-in thermal cut-off to protect the motor from overheating, improving safety and extending service life. The motor itself is rated for a 1,500-hour operational life, providing confidence in long-term reliability. A supplied check valve prevents backflow, while the vented body design reduces the risk of air locking, allowing the pump to operate smoothly and consistently. The threaded outlet port simplifies hose connection and maintenance, making installation straightforward.

Designed for flexibility, the Rule 27DA 1100 12V Submersible Bilge Pump supports both 25mm (1″) and 28mm (1 1/8″) bore hoses, allowing compatibility with a wider range of existing plumbing setups. While the base is not interchangeable with older Rule pump ranges, it can be fitted to existing screw holes, making it suitable for upgrades or replacements without major modification. For automatic bilge operation, the pump is compatible with Rule Float Switches, enabling hands-free operation and added peace of mind.

FEATURES

• Output up to 69 litres/minute (15 gallons/minute)
• Maximum recommended discharge head of 2 metres
• Compact design ideal for smaller vessels
• Tough plastic body for marine durability
• Quick-release inlet strainer for easy cleaning
• Low amp draw to conserve battery power
• Built-in thermal cut-off for motor protection
• Motor rated for 1,500-hour life
• Check valve included for backflow prevention
• Vented body to prevent air locking
• Threaded port for easier installation and maintenance
• Compatible with Rule Float Switches for automatic operation

SPECIFICATIONS

• Connections: 25mm (1″) and 28mm (1 1/8″) bore hose
• Dimensions: 111mm high, 64mm x 74mm
• Current Draw: 3.7 amps
• Fuse Size: 6 amp
• Output: 69 litres/minute (15 gallons/minute)
• Weight: 0.41 Kg (Approx. 0.61 Kg packed)
• Packaged Dimensions: L: 18.00 x H: 9.00 x W: 17.00 cm
• Voltage: 12V DC
