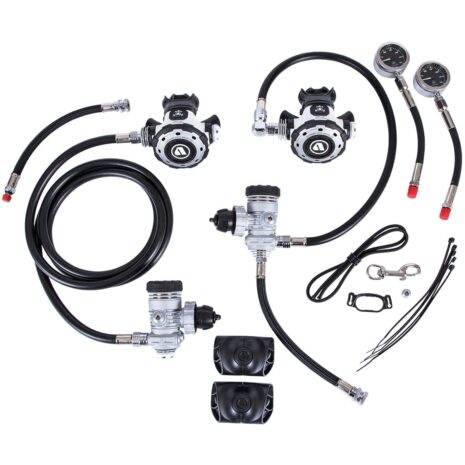

Apeks MTX-R Sidemount Set Complete

The Apeks MTX-R Sidemount Set Complete is a purpose-built, expedition-ready regulator configuration designed to withstand the rigours of cold water, contaminated environments, and extreme sidemount diving. Engineered for reliability, durability, and field serviceability, this system is tailored for divers who operate in demanding conditions where equipment performance must remain consistent and predictable. The MTX-R platform is widely recognised for its rugged construction and ability to perform in environments that place exceptional stress on life-support equipment.

At the core of this sidemount set are two over-balanced, environmentally sealed diaphragm first stages. This over-balanced design delivers superior breathing performance as depth increases by allowing medium-pressure gas to rise faster than ambient pressure. The compact, environmentally sealed diaphragm system completely eliminates the maintenance challenges associated with silicone, oil, or grease filling, making it particularly well suited for frequent use in cold or contaminated water. An over-moulded environmental end cap and diaphragm help prevent ice build-up that can cause first-stage free flow in extreme circumstances, while also protecting the regulator from impact damage during transport and use.

The forged first-stage bodies incorporate heat-exchanging ribs to maximise thermal performance, while angled high-pressure ports ensure optimal hose routing and secure transmitter fitting. Each first stage features five 3/8” UNF medium-pressure ports and two 7/16” UNF high-pressure ports, with a forged rotating turret that aligns medium-pressure ports in a parallel direction for improved hose orientation in sidemount configurations. The fifth medium-pressure port includes a protective bumper when not in use, adding durability and safety. Double swivel hoses enhance freedom of movement and comfort, particularly when diving in restrictive exposure protection.

The MTX-R second stages are intentionally simple, with no diver-operated controls, reducing complexity and lowering the risk of free flow in harsh environments. Breathing performance is delivered via a high-performance pneumatically balanced, lever-operated poppet valve. Large, diver-friendly purge buttons and extensive impact protection ensure usability and longevity, while a large heat exchanger helps reduce the risk of second-stage freezing. The system is tested to EN250A standards for octopus use to 60 metres in cold water and is Nitrox/Oxygen compatible, making it a dependable choice for serious sidemount, technical, and exploration diving.

FEATURES

• Complete rugged sidemount regulator system for extreme environments
• Over-balanced, environmentally sealed diaphragm first stages
• Designed for frequent cold and contaminated water use
• Over-moulded environmental end caps to reduce ice build-up and impact damage
• Forged first stage bodies with heat-exchanging ribs
• Five medium-pressure ports and two high-pressure ports per first stage
• Rotating turrets with parallel port orientation
• Angled HP ports for improved hose routing and transmitter fitting
• Double swivel hoses for enhanced comfort and mobility
• Simple, non-adjustable second stages to reduce free flow risk
• Pneumatically balanced poppet valve for high breathing performance
• Large self-flushing purge buttons
• Extensive elastomer impact protection on second stages
• Reversible second stages for left or right-hand gas supply
• Large heat exchangers to reduce freezing risk
• Active antimicrobial protection in gas-contact components
• Tested to EN250A for octopus use to 60 m in cold water
• Nitrox/Oxygen compatible
• Includes new bungee connector system

SPECIFICATIONS

• Connections: DIN only
• Type of first stage: Over-balanced diaphragm design, environmentally sealed
• Body Type: Forged first stage body with heat exchanging ribs for maximum thermal performance.
• Number of HP ports: 2 (7/16″ UNF) per first stage
• Number of MP ports: 5 (3/8″ UNF) per first stage
• Environmental Dry Kit: Standard
• First stage exterior: Satin chrome
• Orientation: Convertible LH or RH
• Coldwater Use: Yes
• Type of second stage: Pneumatically balanced
• Opening Effort Control Knob: No
• Integrated Venturi Lever: No
• Mouthpiece: Comfo-bite™
• Exhaust tee: Diver Changeable – comes with 2 sets
• Heat Exchanger for freezing resistance: Yes
• Hose type: Rubber breathing hoses and braided flexi inflator hoses
• Nitrox compatible: Yes to 40% O2 when new, out of the box / Can be O2 cleaned to 100%.
• Gauge face: Tempered glass
• Over-pressure relief on gauge back: Yes

PACKAGE CONTENTS

• 2 × DPT DIN first stages with 5-port swivel turrets
• 2 × Apeks MTX-R second stages
• 1 × 210 cm double swivel hose
• 1 × 61 cm double swivel hose
• 2 × 25 cm MP inflation hoses (buoyancy system and drysuit)
• 2 × TEK pressure gauges with 18 cm hoses
• 1 × 90° elbow fitting
• 1 × Bungee necklace
• 1 × Bungee clip
• 1 × Stainless steel bolt snap
• 2 × Sets of short exhaust ports
• 1 × Regulator bag
• Setup illustration, CD manual, and quick start guide

WARNINGS & CARE INSTRUCTIONS

• Designed for extreme cold water, expedition, and exploration diving
• Field-serviceable design for remote dive operations
• Now includes the new Apeks bungee connector system
