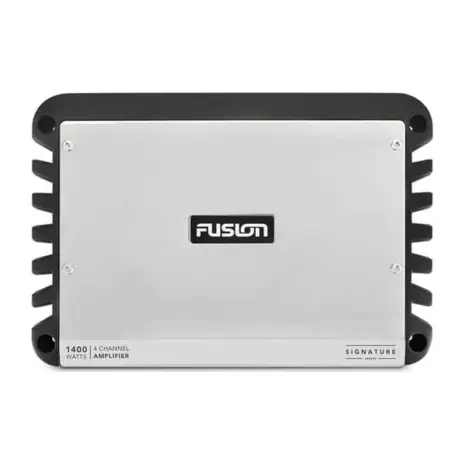

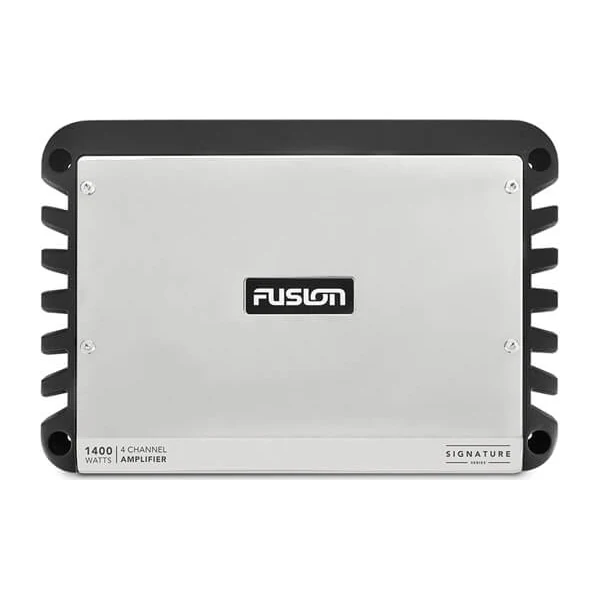

Fusion Signature Series Marine Amplifiers, Signature Series 4 Channel 1400-Watt Marine Amplifier – SG-DA41400

Description

Build an audio system with amplification selected for the speakers and listening zones on your boat. Fusion Signature Series Marine Amplifiers, Signature Series 4 Channel 1400-Watt Marine Amplifier – SG-DA41400 adds a dedicated power stage to a compatible setup, with the exact model and supply requirements set out below.

Choose the right configuration

• Manufacturer part number: 010-01969-00
• Supplied model: SG-DA41400,FUSION,4 Channel Marine Amplifier
• Exact variant: Signature Series 4 Channel 1400-Watt Marine Amplifier
• Selected configuration: 4; httpsresgarmincomenproducts010-01969-00vcf-sm-767a6552-b5d1-491c-b361-7794b4971526jpg
• Physical dimensions (Height): 210 mm (8.27")
• Physical dimensions (Width): Monoblock/4/5-Channel: 300 mm (11.81") 6/8-Channel: 420 mm (16.54")
• Physical dimensions (Depth): Monoblock/4/5-Channel: 50 mm (1.97") 6/8-Channel: 57 mm (2.24")
• Weight: Monoblock: 3.8 kg (8.38 lbs) 4-Channel: 3.53 kg (7.77 lbs) 5-Channel: 3.6 kg (7.94 lbs) 6-Channel/6-Channel (24 V): 5.3 kg (11.68 lbs) 8-Channel: 5.6 kg (12.35 lbs)
• Operating voltage: Monoblock/4/5/6/8-Channel: 10.8-16 VDC 6-Channel (24 V): 21.6-32 VDC
• Operating temperature range: 0° to 50° C (32° to 122° F)
• Input voltage range @ RCA inputs: 0.3 V-8 V RMS (user adjustable)

What is included

• Four 8-gauge, self-tapping screws
• 3 mm hex key (for the top cover and power terminals)
• 2.5 mm hex key (for the speaker terminals)
• Polishing cloth
• Spare J1171 compliant 40 A blade-type fuses

Before you order

Check the exact mounting dimensions, speaker impedance, amplifier matching and electrical supply before installation. This product is intended for its documented audio function; other equipment shown in a system illustration is not included unless listed above.
