Description

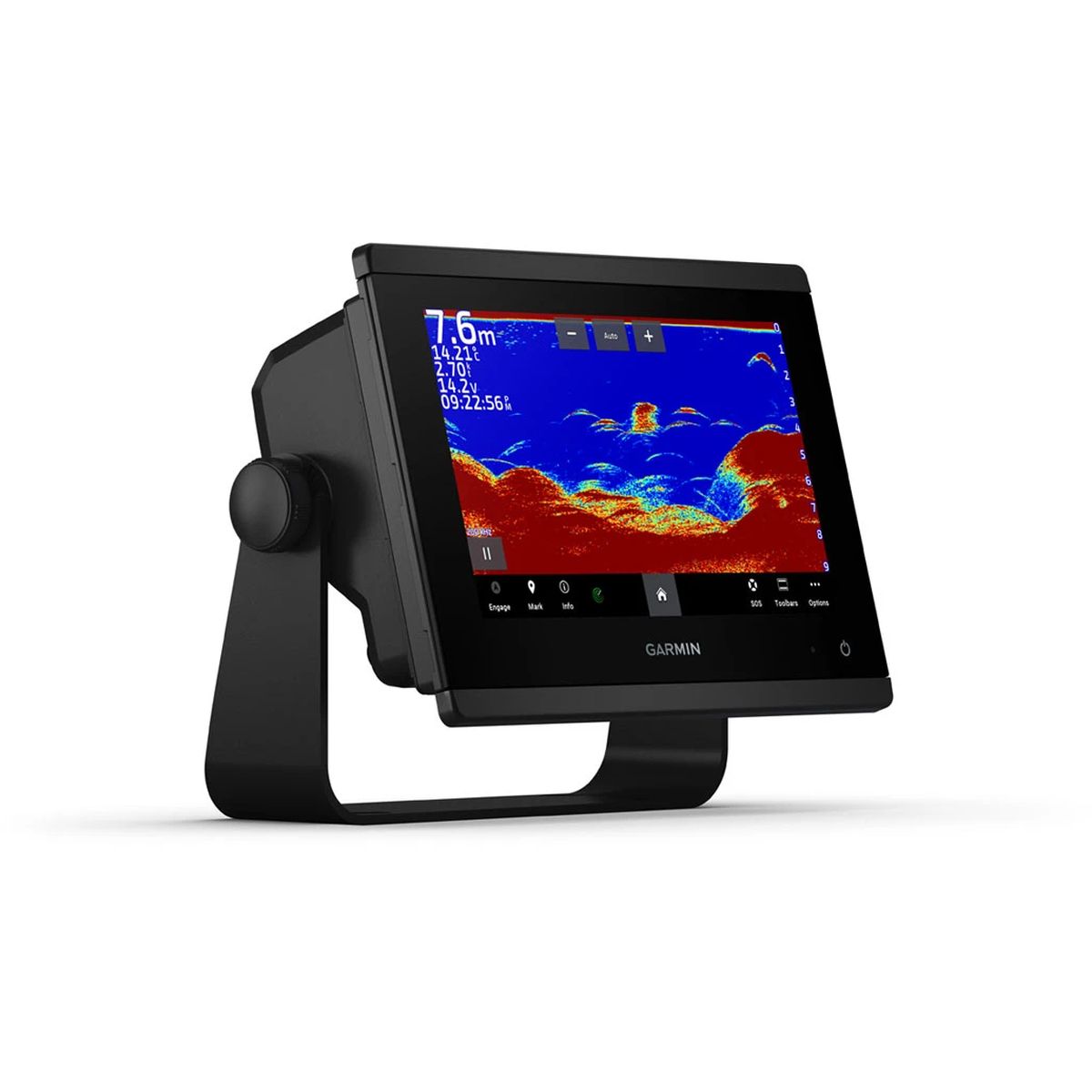

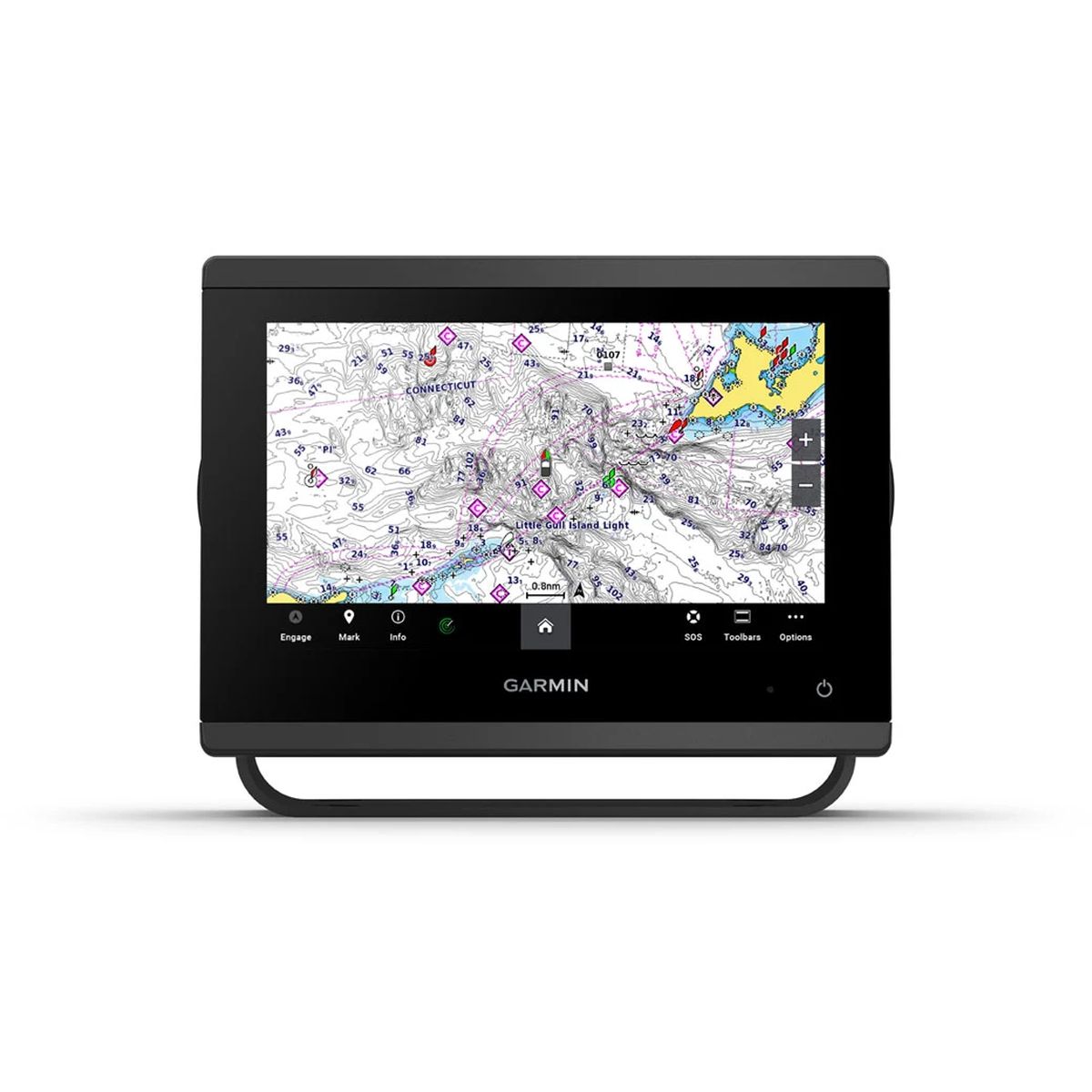

Garmin GPSMAP 723xsv Chartplotter With Sonar

The Garmin GPSMAP 723xsv Chartplotter is a compact yet powerful 7″ multifunction unit designed for anglers and boaters who want advanced processing, seamless connectivity and exceptional sonar performance in a small footprint. Its upgraded IPS display provides crisp detail, improved sunlight readability and wide viewing angles, giving you a clearer picture of charts, sonar and system data from anywhere at the helm. With a modern slimline design and edge-to-edge glass, the unit fits effortlessly into a wide range of dash configurations, making it ideal for both new installations and retrofits.

This model includes built-in Ultra High-Definition SideVü and ClearVü scanning sonar, along with support for 1 kW CHIRP traditional sonar, offering high-contrast target separation and detailed views of structure and fish beneath and around your boat. It also supports Panoptix and LiveScope live sonar systems when paired with compatible transducers. The GPSMAP 723xsv integrates smoothly into the wider Garmin Marine Network, enabling the sharing of radar, cameras, user data and mapping across multiple compatible devices. With NMEA 2000 and NMEA 0183 support, the unit connects to autopilots, AIS, audio systems, weather modules and more.

For navigation, the chartplotter is compatible with Garmin Navionics+ and Garmin Navionics Vision+ cartography, offering integrated coastal and inland content, daily map updates and Auto Guidance+ technology. Sailors benefit from Garmin SailAssist features such as laylines, race start guidance, enhanced wind data and sailing polars to optimise performance.

Built-in Wi-Fi works with the ActiveCaptain app to provide OneChart access, software updates, smart notifications and community-generated mapping. The GPSMAP 723xsv also supports ANT wireless connectivity for pairing with marine watches, wind sensors and remotes, while OneHelm centralises the control of select third-party systems like digital switching. Engine integration expands compatibility to a range of marine engines, including select Yamaha models. When paired with an inReach communicator, the unit allows message sending directly from the chartplotter for added safety and convenience on the water.

FEATURES

• Easily integrate with more engines.
• Connect to compatible third-party devices with OneHelm digital switching.
• Easily build your marine system using the best of network connectivity.
• Compatible with premium maps and charts for the best in Garmin navigation.
• See below your boat with built-in sonar capabilities
• Manage your marine experience from nearly anywhere.

SPECIFICATIONS

• Dimension: 7.6″ x 5.5″ x 2.9″ (19.2 x 14.0 x 7.4 cm)
• Weight: 2.8 lbs (1.3 kg)
• Water rating: IPX7
• Touchscreen: Yes
• Display Type: WSVGA display
• Display Size: 6.1″ x 3.5″; 7.0″ diagonal; (15.4 x 9.1 cm; 17.8 cm diagonal)
• Display Resolution: 1024 x 600 pixels
• Mounting Options: Bail, flush or flat
• Input: Touchscreen
• Polarised Lens Viewability: Yes
