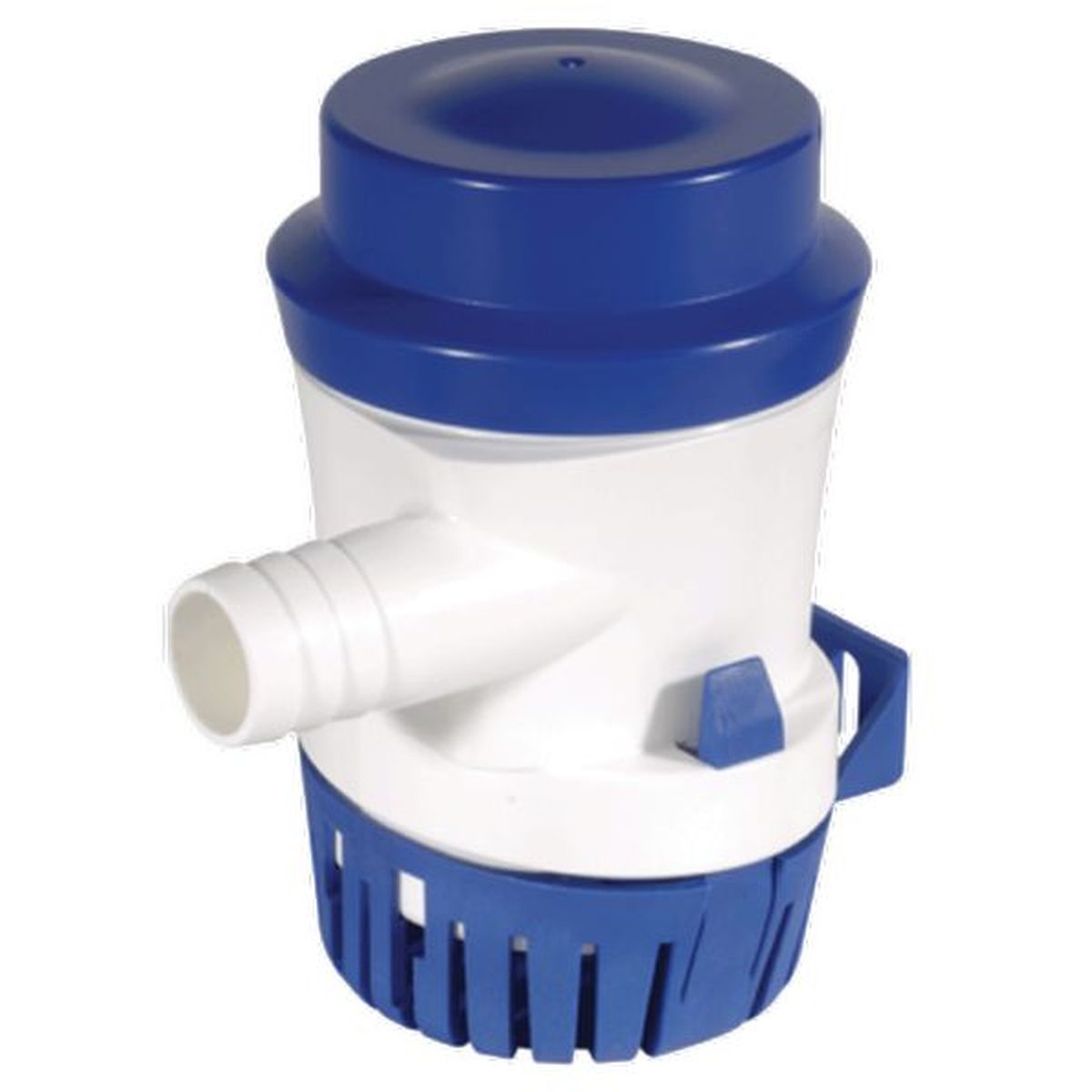

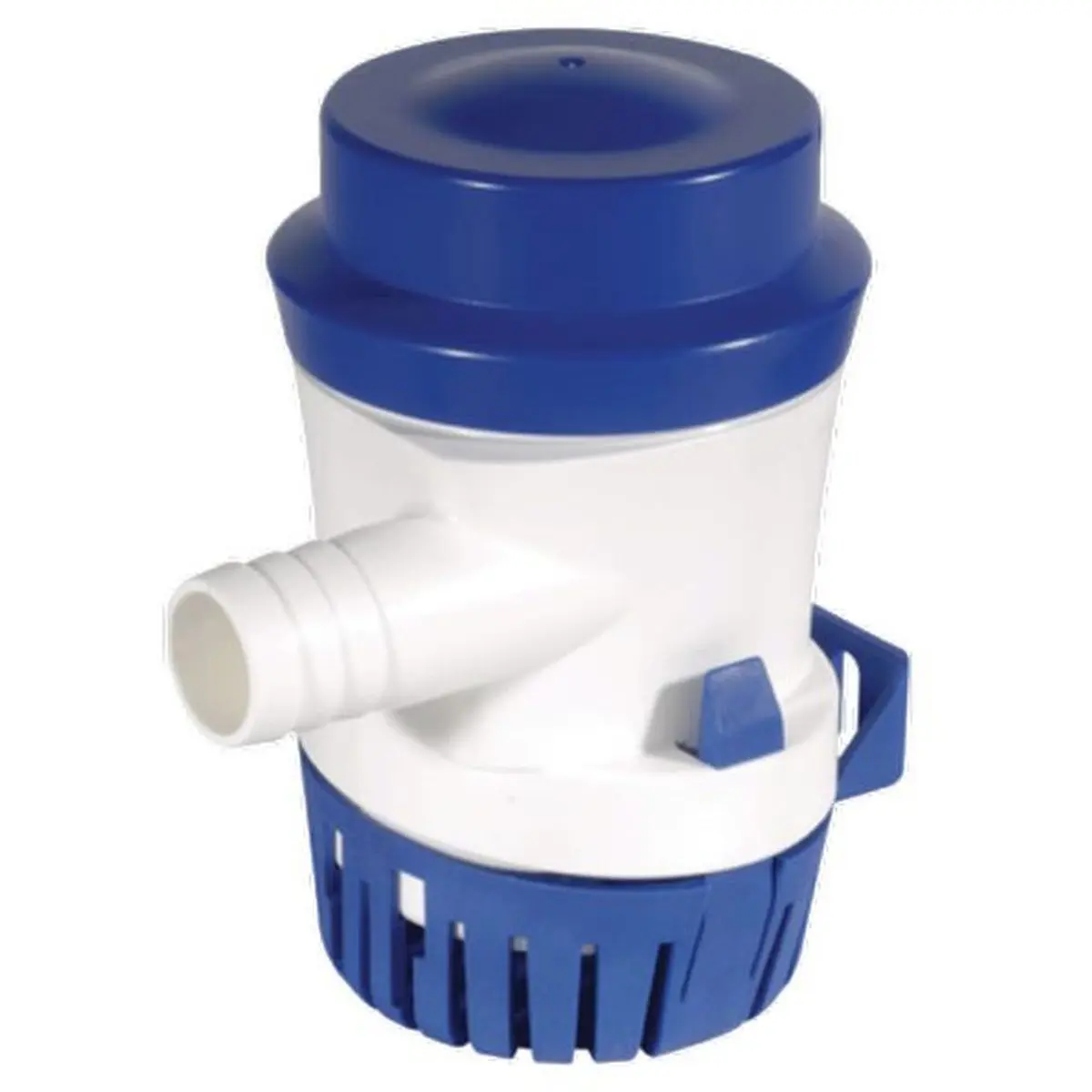

Ultraflex Shurflo Bilge Pump – 1000 GPH

The Ultraflex Shurflo Bilge Pump is a durable and high-performance pump designed to handle challenging marine conditions. Built by SHURFLO®, a trusted name in marine equipment, this bilge pump ensures reliability and longevity even in tough environments, thanks to its water-cooled motor and corrosion-resistant construction.
The Ultraflex Shurflo Bilge Pump is an essential component for any vessel requiring dependable water removal. Its tough nylon housing and optional float switch integration provide added convenience and control.

FEATURES

• Continuous duty – 12 Volt
• Submersible with 3’ tinned wire assembly
• Tough nylon housing
• Quick-snap swivel baseplate
• Ignition protected. ISO 8849
• All pumps can be integrated with a drive switch

SPECIFICATIONS

• Dimensions: 114mm x 95mm (4,5″ x 3,75″) ø Base 60mm (2 3/8″)
• Flow rate: 1000 GPH – 63 litres per minute
• Current: 3,4 Amp Max
• Outlet port: 1-1/8″ barb
• Max Head: 3,3m (11ft)
• Temperature limits: 33ºF-140ºF [0ºC-60ºC].
• Pump Type: Centrifugal
• Motor: DC Permanent Magnet 12 Volt
• Lead wires: 3 ft. #16 GA tinned stranded copper wire (min corrosion), for installation 20+ft use #14GA.
• Fuse: 6 Amp fuse
• Duty Cycle: Continuous Duty
• Control: No control
